Click on pictures to enlarge

CYLINDERS FOR FIRE EXTINGUISHERS :

Design and production of cylinders according to the European directives 2014/68/UE PED, enclosure 3, H form, and the EN 3   European rules:    cylinders suitable for portable fire extinguishers Ø 150, 160, 170 and 180 mm; 6, 9 and 12 kg   cylinders suitable for wheeled fire extinguishers Ø 300 mm  Materials: carbon steel (pickled) and stainless steel. Certified welding processes: wire welding with MAG (metal-arc active gas) process  Automatic sandblasting with metal grid, inside and outside the cylinders Lining process with polymer powder (plasticization)   Outside painting process with powder coating RAL 3000  Air, hydraulic and dielectric tests (for the water models) on 100% of production  Random burst test as per the EN3-8 rule   Both the whole production and every test are performed internally by the personnel of the company:

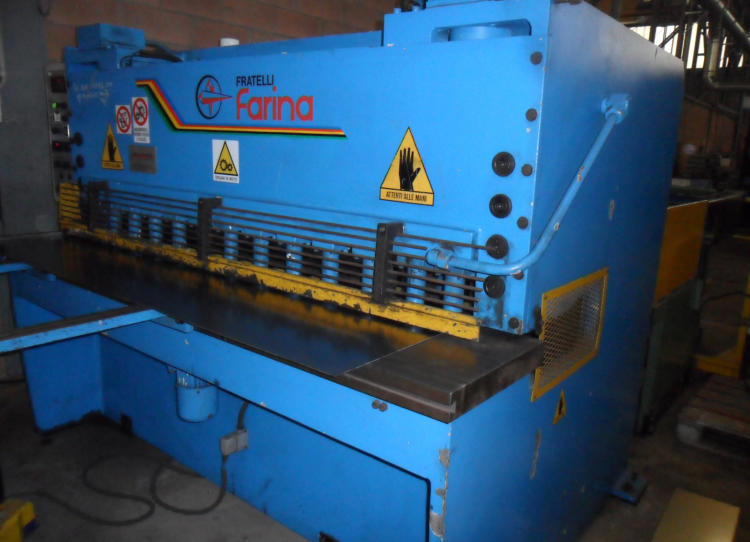

Shearing

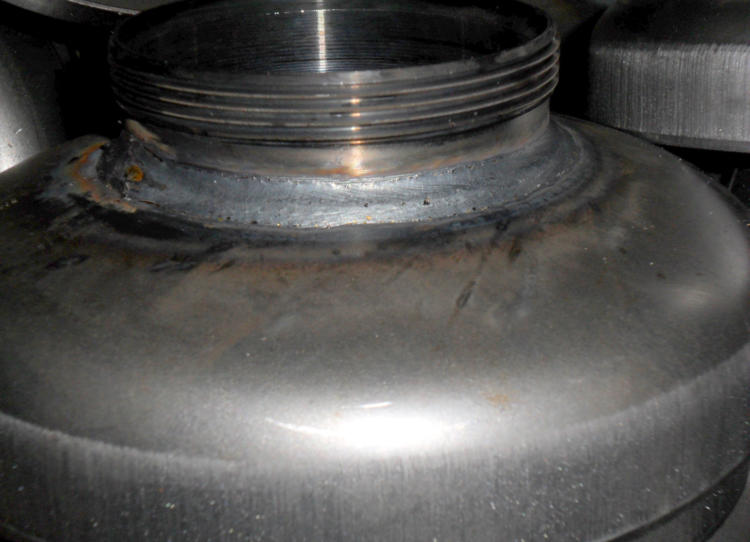

Welding of ring nut on the top

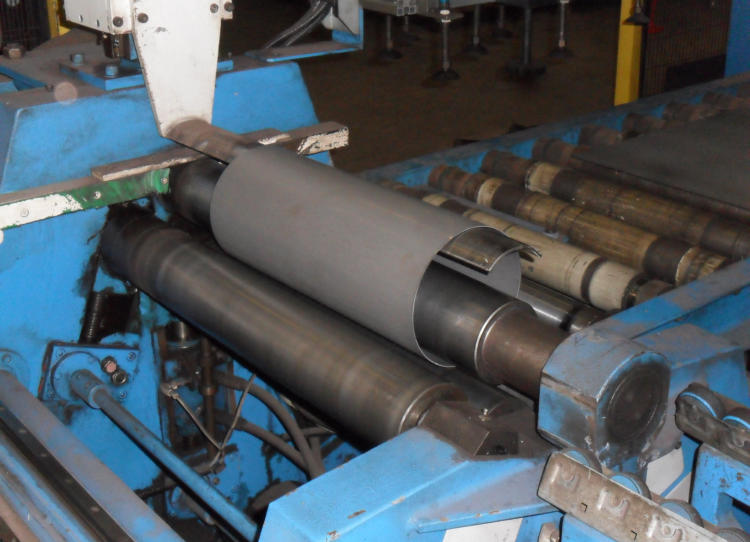

calendering

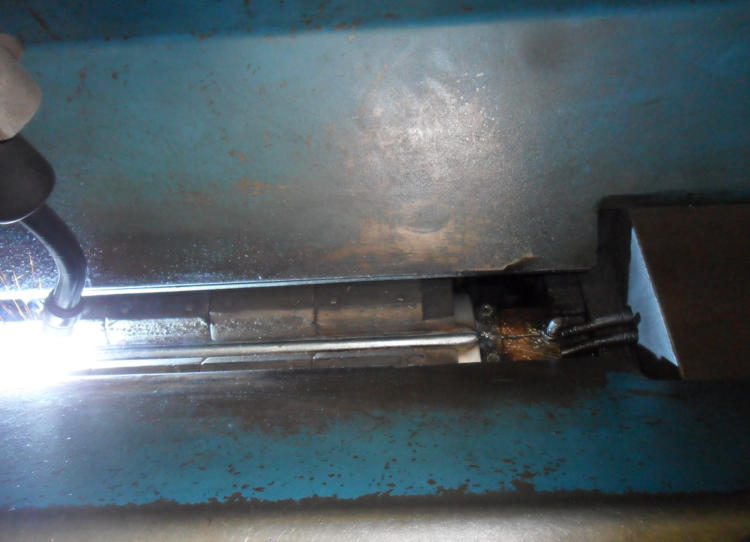

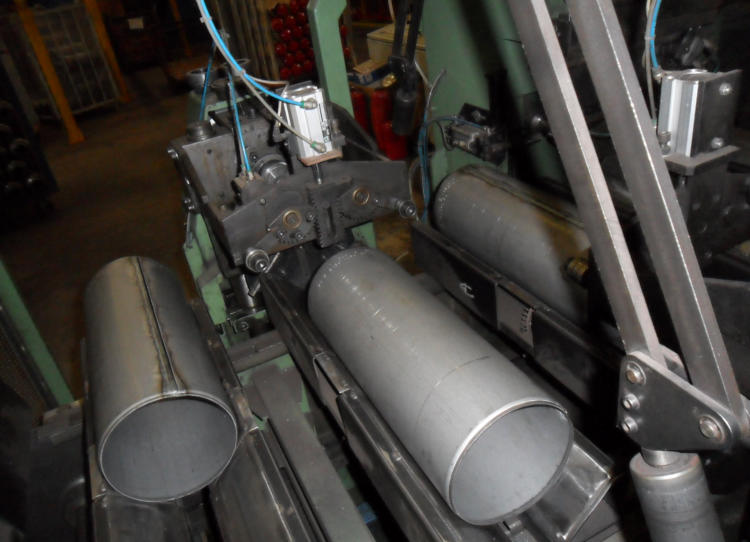

longitudinal welding
swaging and marking

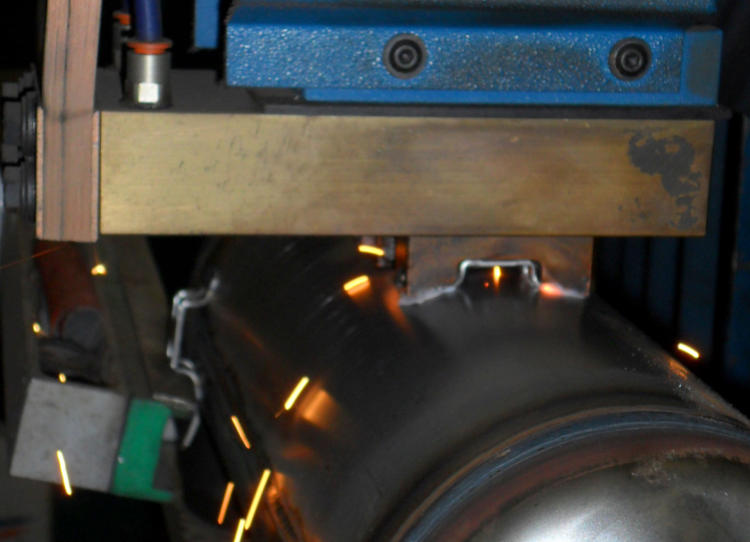

clip for wall bearing

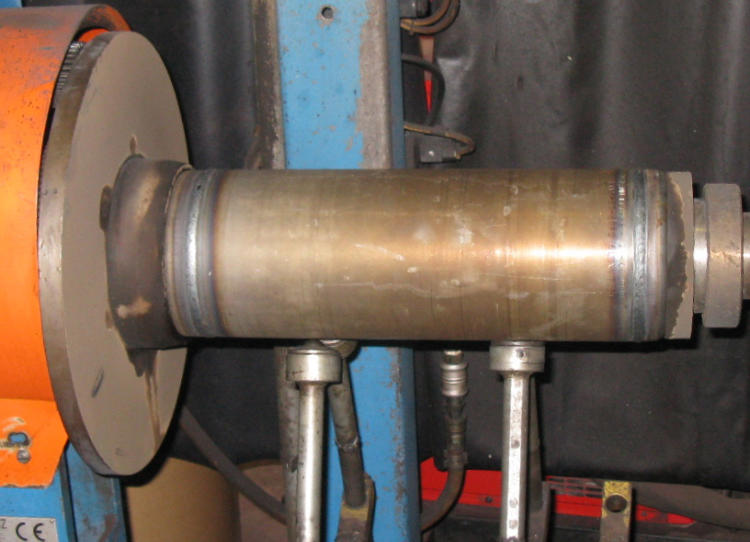

circumferential welding

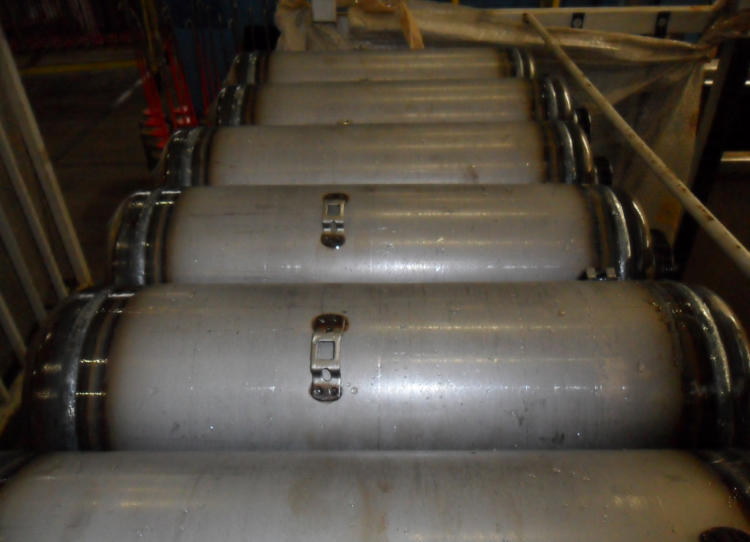

clip for hose bearing

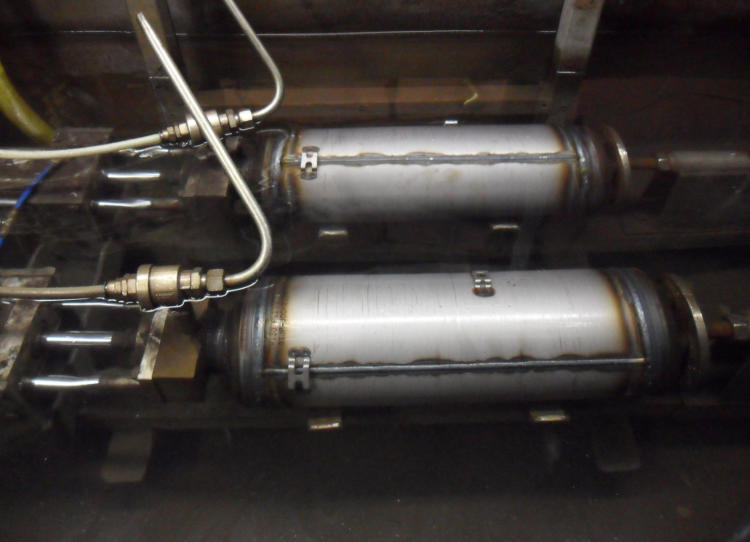

Air test

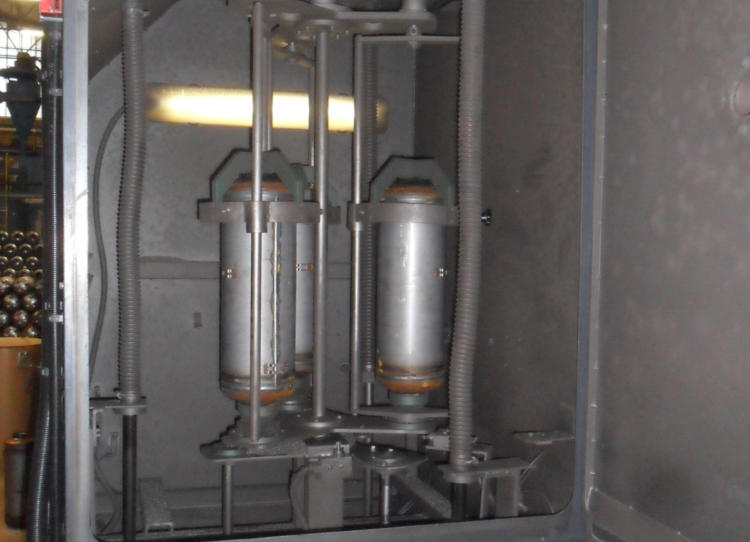

Lining sandblasting for lined cylinders (water model)

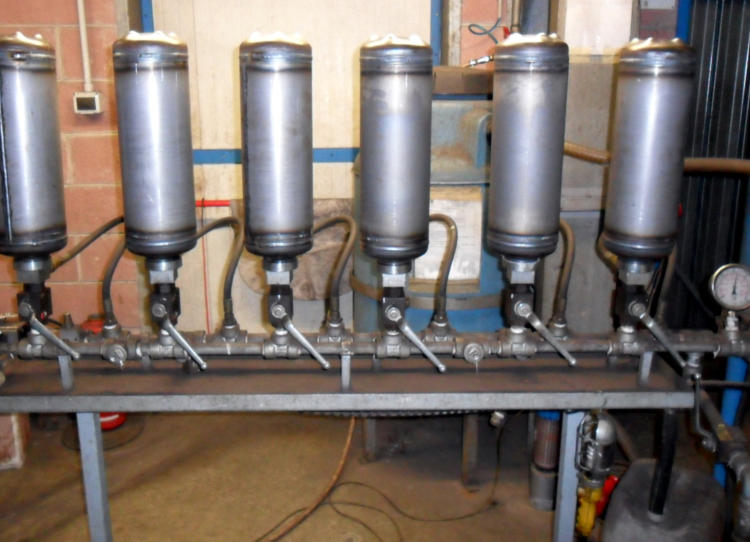

hydraulic test

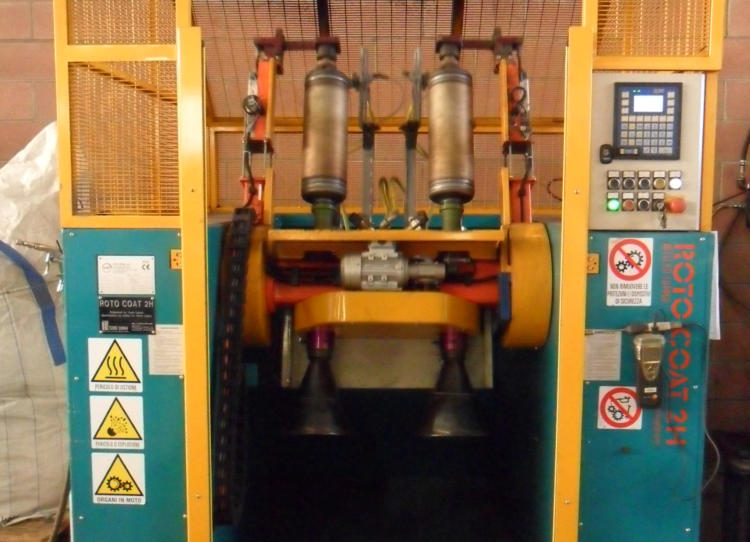

Lining plasticization with polymer powder (water model)
section of lined plasticized cylinder

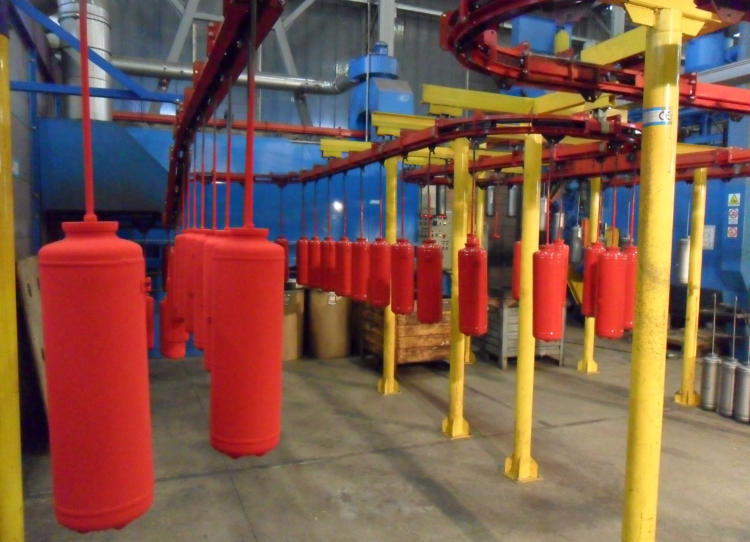

painting with powder coating RAL 3000

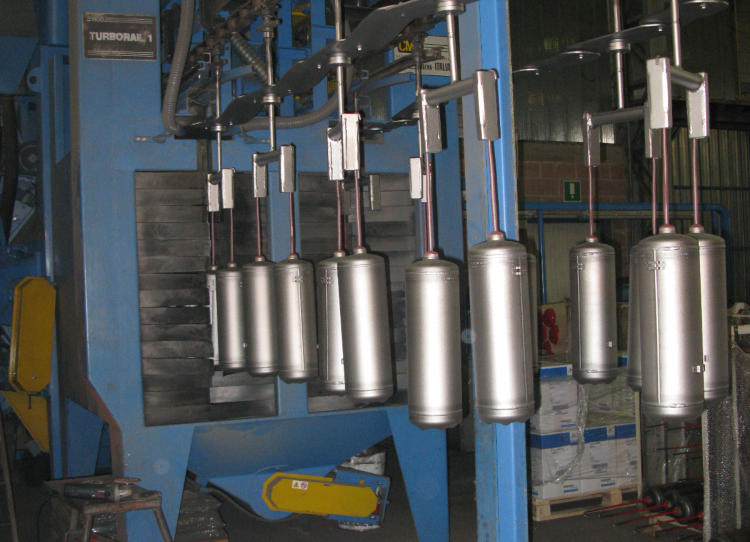

outside sandblasting

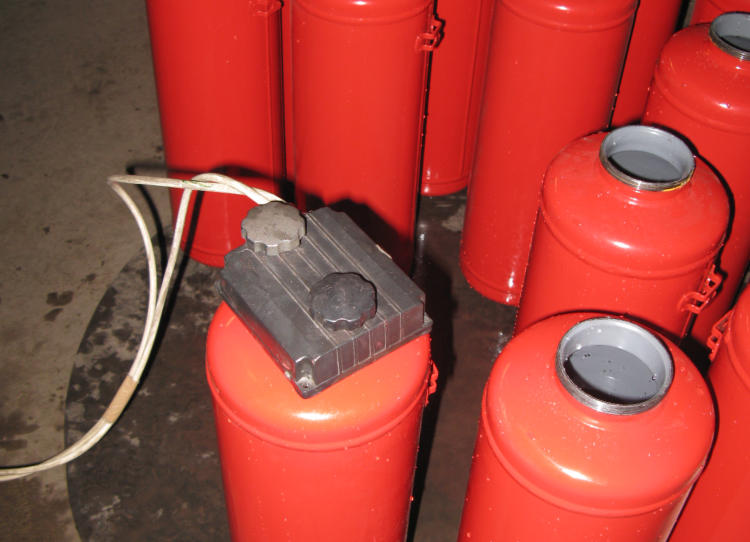

dielectric test for plasticization (water model)

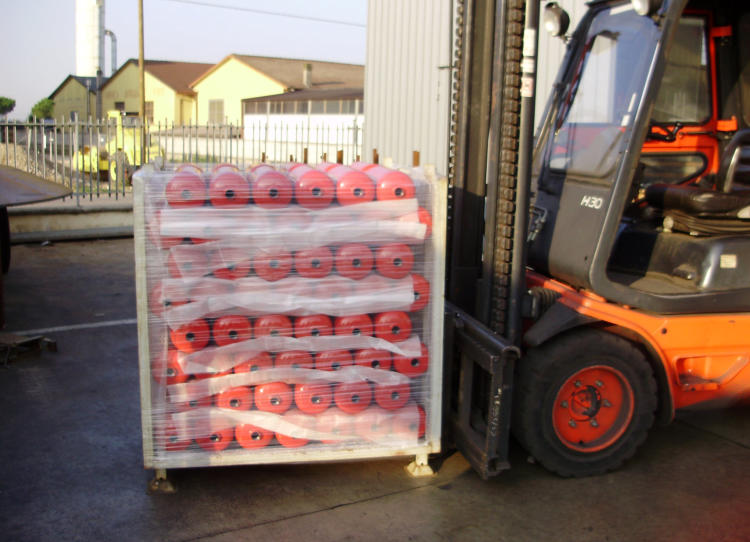

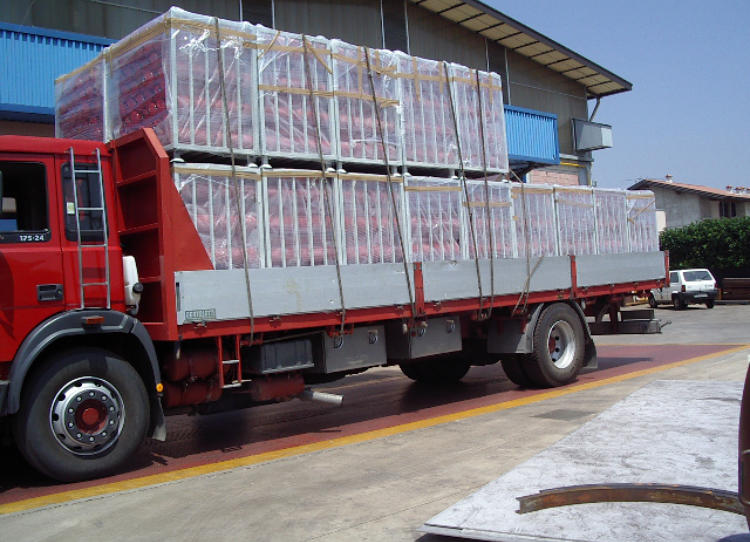

Domestic trasport
Packaging

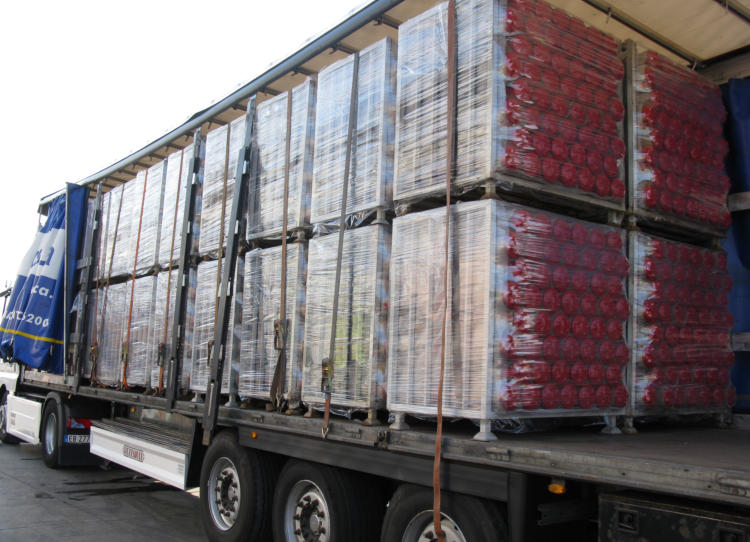

International transport

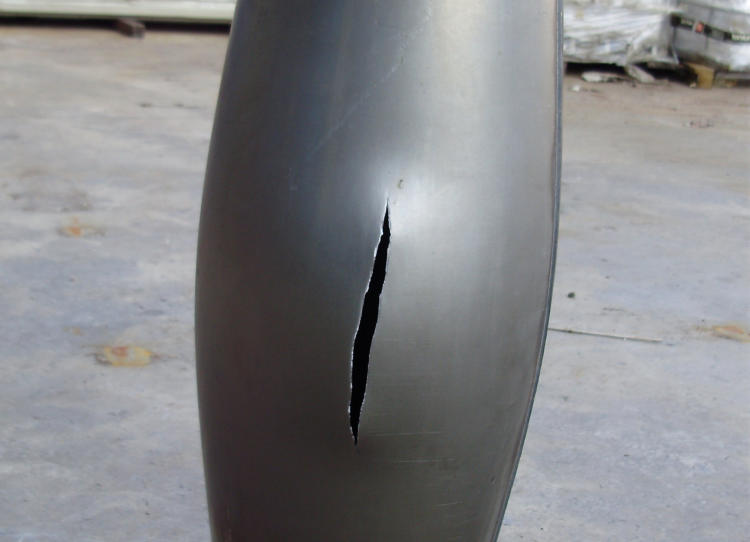

burst tests
